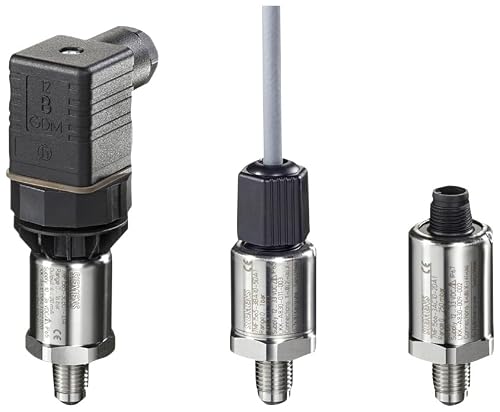

Siemens Transducer sitrans p200 for pressure 7mf1565-3ba00-1aa1

Sitrans p200 transmitters for pressure and absolute pressure for general applications non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material, non-wetted parts material: stainless steel measuring range for gauge: 0 to 1 bar, overload- pressure 2,5 bar output signal: 4 to 20 ma two-wire connection, power supply dc 7 to 33 v without explosion protection electrical connection: plug to din en 175301-803-a, threat for packed gland m16 (with connector) process connection: g1/2 male to en 837-1 (1/2 bsp male) (standard for metric pressure ranges m bar, bar) sealing material between sensor and housing: viton (fpm, standard) standard version
